Computer Servo Tensile Compression Testing Machine UTM HZ-1003A 2000kg Computerized

Dongguan Lixian Instrument Scientific Co.,LTD
Contact Now

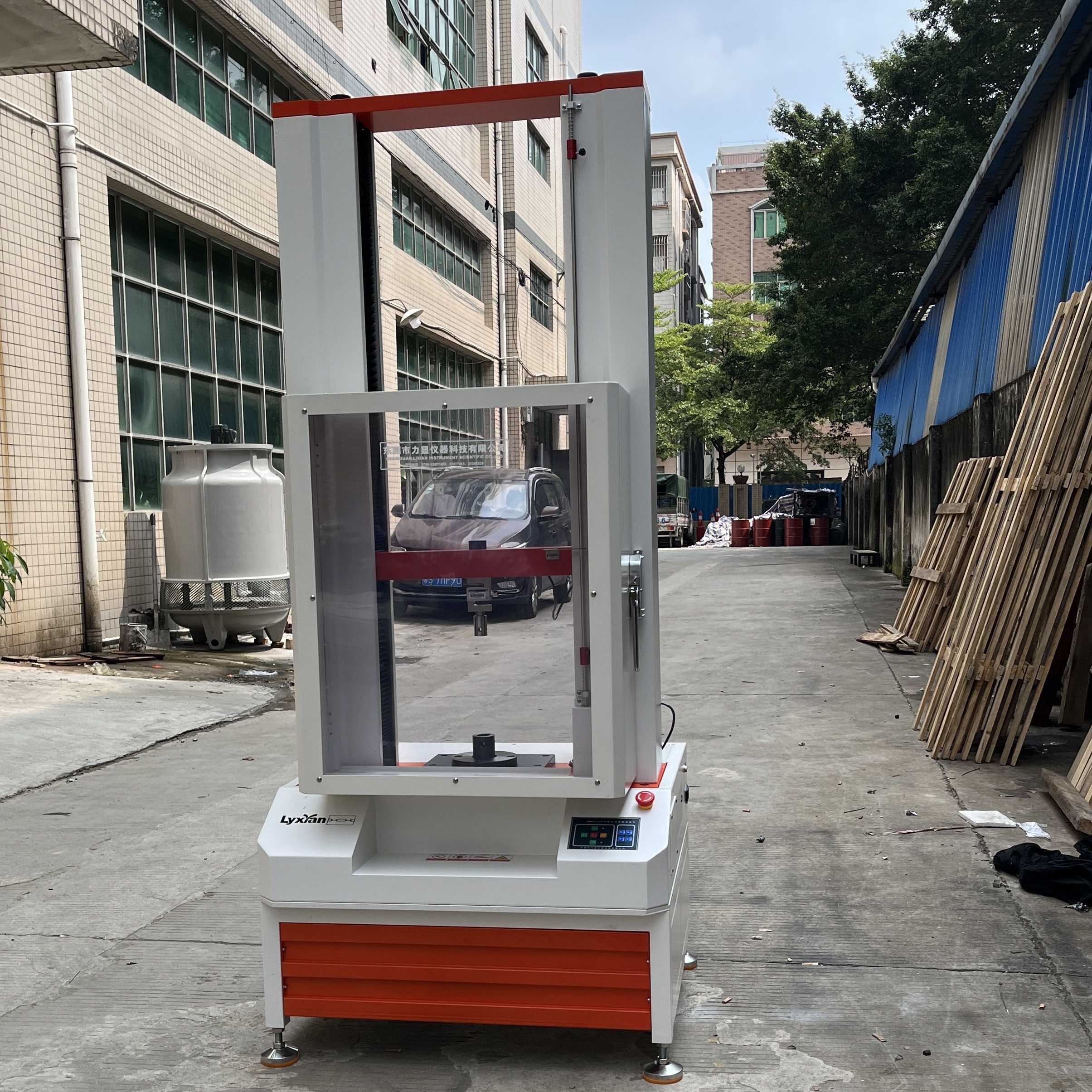

Computer Servo Tensile Compression Testing Machine UTM HZ-1003A 2000kg Computerized

  • 1
  • 2
  • 3

Brand Name : lixian

Model Number : HZ-1003A

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : negotiate

Delivery Time : 7 days

Packaging Details : wood

Effective force range : 0.4%~100% (0.5grade)

Effective test width : 390mm (can be enlarge as customer request)

Resolution : 1/200000

Load cell : Basic configuration:one piece( max load)

weight : 300kg

Accuracy : 0.5

Software : Included

Controls : Computerized

Test Speed : 0.01~500mm/min

Display : LCD

Max. Force : 2000kg

Safety : Emergency Stop

Contact Now

Universal Testing Machine For Rubber, Plastics, Metal Testing With Protective Cover 0.5 Grade Accuracy

Universal Testing Machine (UTM) HZ-1003A is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures.

Universal Testing Machine Equipment summary:

It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc, such as rubber, plastics, leather, metal, nylon wire, fabric, etc. The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer. it is taken account of modern industrial design and ergonomics in modeling and coating.

Universal Testing Machine Technical parameters:

Model HZ-1003A Universal Testing Machine
Max load 20KN
Accuracy 0.5grade
Effective force range 0.4%~100% (0.5grade)
Load cell Enlarge configuration:can be increased extra laod cell
Effective test width 390mm (can be enlarge as customer request)
Effective Tensile stroke 800mm (can be enlarge as client request)
Test speed 0.01~500mm/min
accuracy of displacement ≤0.5%
Power supply 220V, 50HZ
Power 0.4KW
Weight About 300 Kg

Universal Testing Machine Specifications:

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break
● stress strength ● tear strength

Computer Servo Tensile Compression Testing Machine UTM HZ-1003A 2000kg Computerized

UTM Fixture

Computer Servo Tensile Compression Testing Machine UTM HZ-1003A 2000kg Computerized
Universal Testing Machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 22 year.
