Thermal Shock Test Chamber Electronic Product Touch Screen 2-Zone MIL-STD 810 Standard Customized Inner Size OEM ODM

Name: Thermal Shock Test Chamber Electronic Product Touch Screen 2Zone MILSTD 810 Standard Customized Inner Size OEM ODM
Brand: lixian
Price: 1 USD

China Thermal Shock Test Chamber Electronic Product Touch Screen 2-Zone MIL-STD 810 Standard Customized Inner Size OEM ODM wholesale

Brand Name : lixian

Model Number : HZ-2012A

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500hundred sets per month

Delivery Time : 7 days

Packaging Details : wood

Temprature range : -77 degree ~+205 degree

Size : Customized size

Corresponding standard ： : SJ/T10187-91Y73, SJ/T10186-91Y73, IEC68-2-14

Application : Industry,Machinery Parts,Auto Part

Dimensions : Customized Sizes

Service : OEM ODM

Display : LCD

Humidity Range : 10%~98%RH

Power Supply : AC220V

Product Name : Environmental Testing Machine

Temperature Accuracy : ±0.5°C

Test Modes : Auto/Manual

Test Time : 0~999h

Contact Now

Temperature Thermal Shock Environmental Test Chamber Climatic Test Chamber For Reliability Test -77 Degree ~+205 Degree

Two Boxes Air-cooled Hot and Cold Thermal Testing ...

Thermal Shock Test Chamber summary:

The thermal shock test chamber,known as a thermal shock chamber or thermal cycling chamber, is a specialized testing equipment used to subject materials and products to rapid temperature changes in order to evaluate their ability to withstand thermal stress and potential failure in real-world conditions.

Thermal Shock Test Chamber Specification:

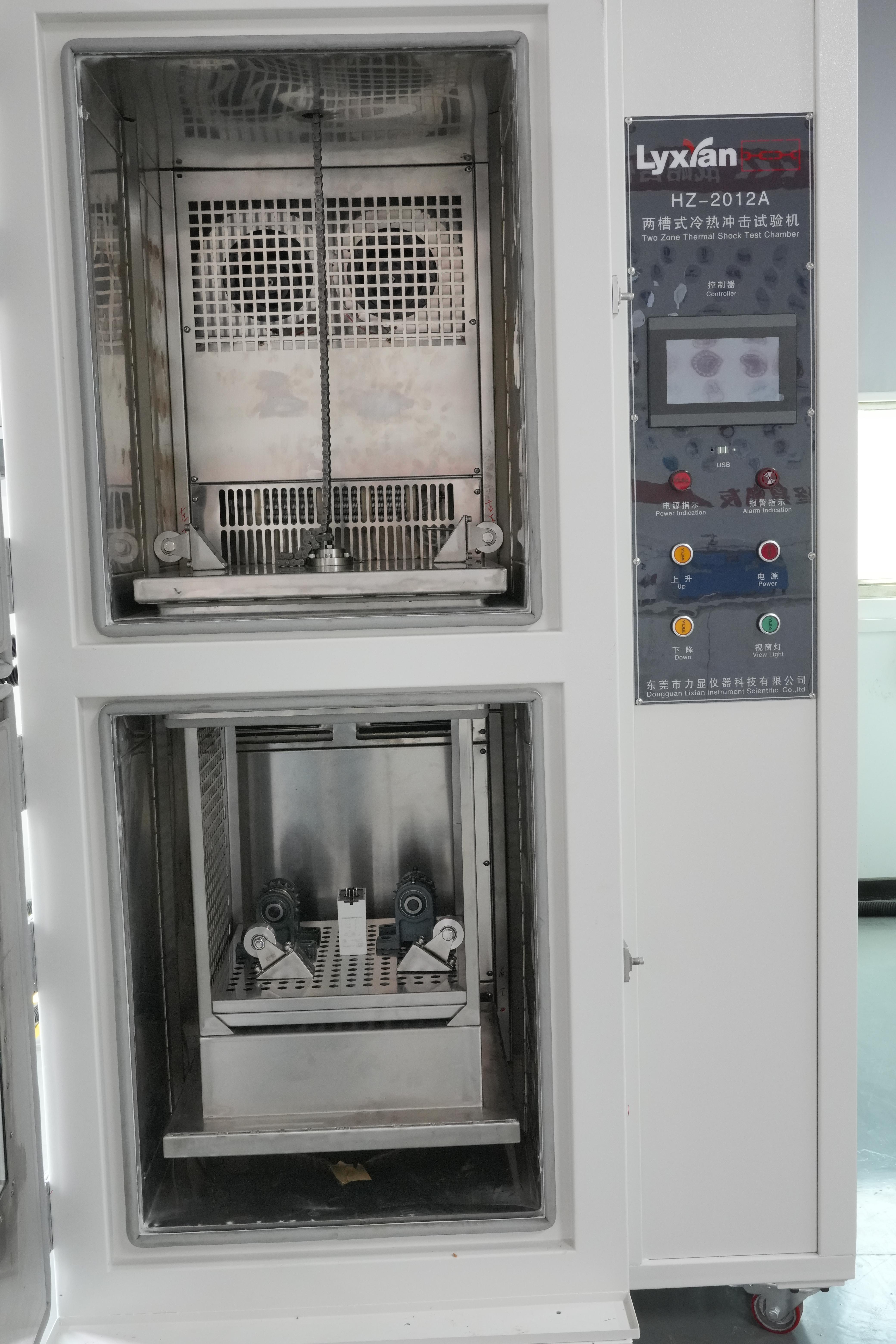

Model			HZ-2012 Thermal Shock Test Chamber
System			2-zone transition by vertical transfer of specimens
Performance *1	Test area	Hot exposure range	＋ 60℃ to ＋ 205℃
		Cold exposure range	−77℃ to 0℃
		Temp. fluctuation *2	± 1.0℃
	Hot chamber	Pre-heat upper limit	＋ 205℃
		Heat-up time *3	Within 90 min from ambient temp. to ＋ 200℃ (Setting: ＋ 205℃)
	Cold chamber	Pre-cool lower limit	−77℃
		Pull-down time *3	Within 90 min from ambient temp. to −77℃ (Setting: −77℃)
	Ambient recovery	Recovery conditions	・Hot exposure: ＋150℃ to max. ＋ 55℃ ・Ambient temp.: ＋ 23℃ ・Specimen: Plastic molded ICs, 10 kg
		Ambient temp. recovery time	Within 90 min
Test area			Shelf brackets on 2 levels (up to 4 baskets can be installed)
Elevating unit			Power slider (250W)
Noise level *10			Max. 65 dB
Exhaust heat rate			12600 kJ/h (3000 kcal/h)
Exhaust air volume			250 m3/h

The thermal shock test chamber typically consists of the following components:

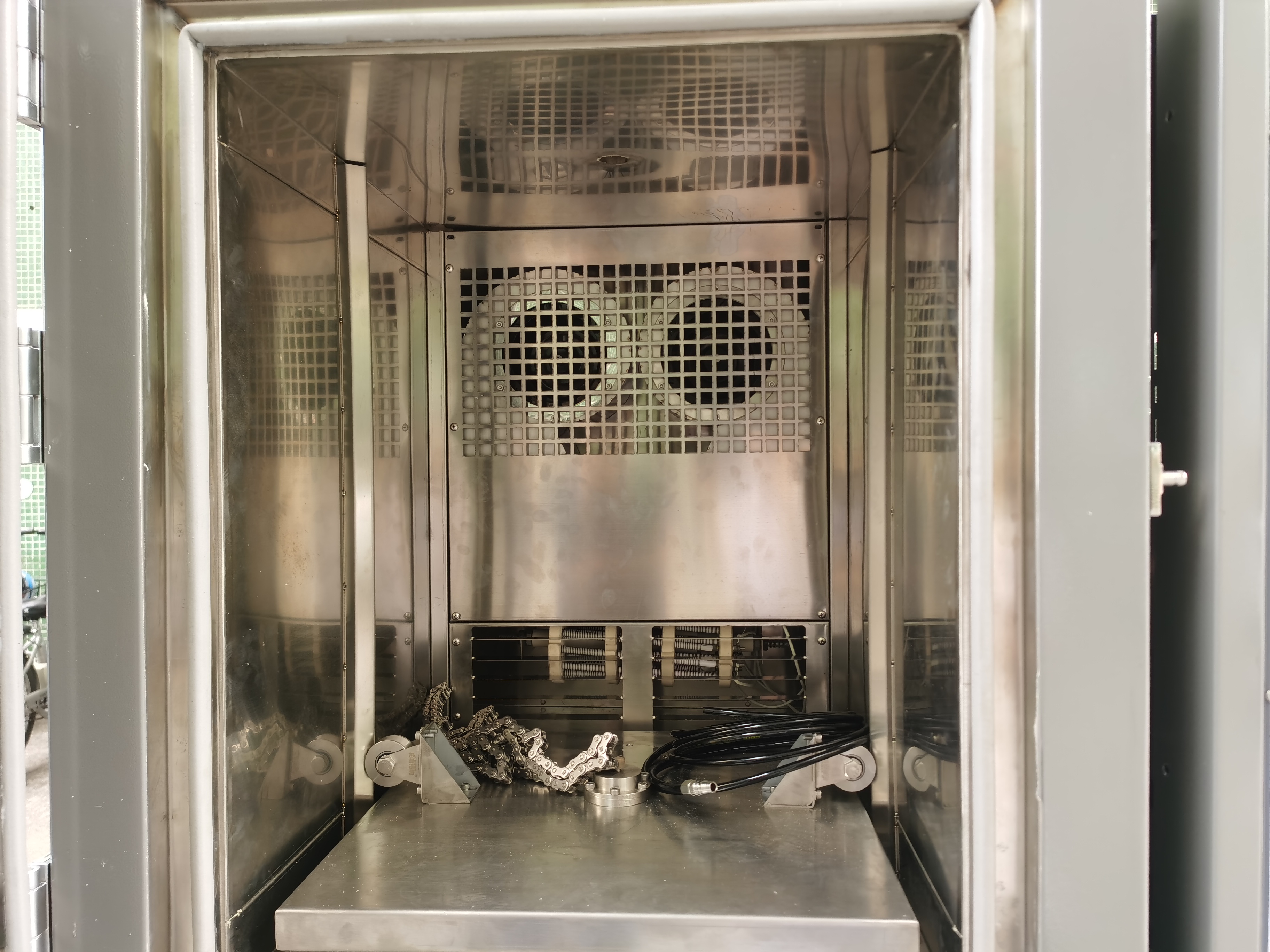

Test Chamber: The test chamber is a sealed enclosure where the specimen or product is placed for testing. It is divided into two or three compartments: a hot zone, a cold zone, and sometimes a transfer zone. The compartments are separated by a movable door or partition.
Heating and Cooling Systems: The test chamber is equipped with heating and cooling systems that provide rapid and controlled temperature changes. The heating system typically uses electric heaters or heating elements, while the cooling system may employ a refrigeration system or liquid nitrogen for rapid cooling.
Temperature Control System: The temperature control system regulates and maintains the desired temperature levels in the hot and cold zones. It includes temperature sensors, controllers, and feedback mechanisms to ensure accurate and precise temperature control.
Control and Data Acquisition System: This system controls the temperature cycling process and collects data during the test. It monitors and records the temperature profiles, dwell times, and other relevant parameters. The data acquisition system captures the temperature response of the specimen, allowing for analysis and evaluation.
